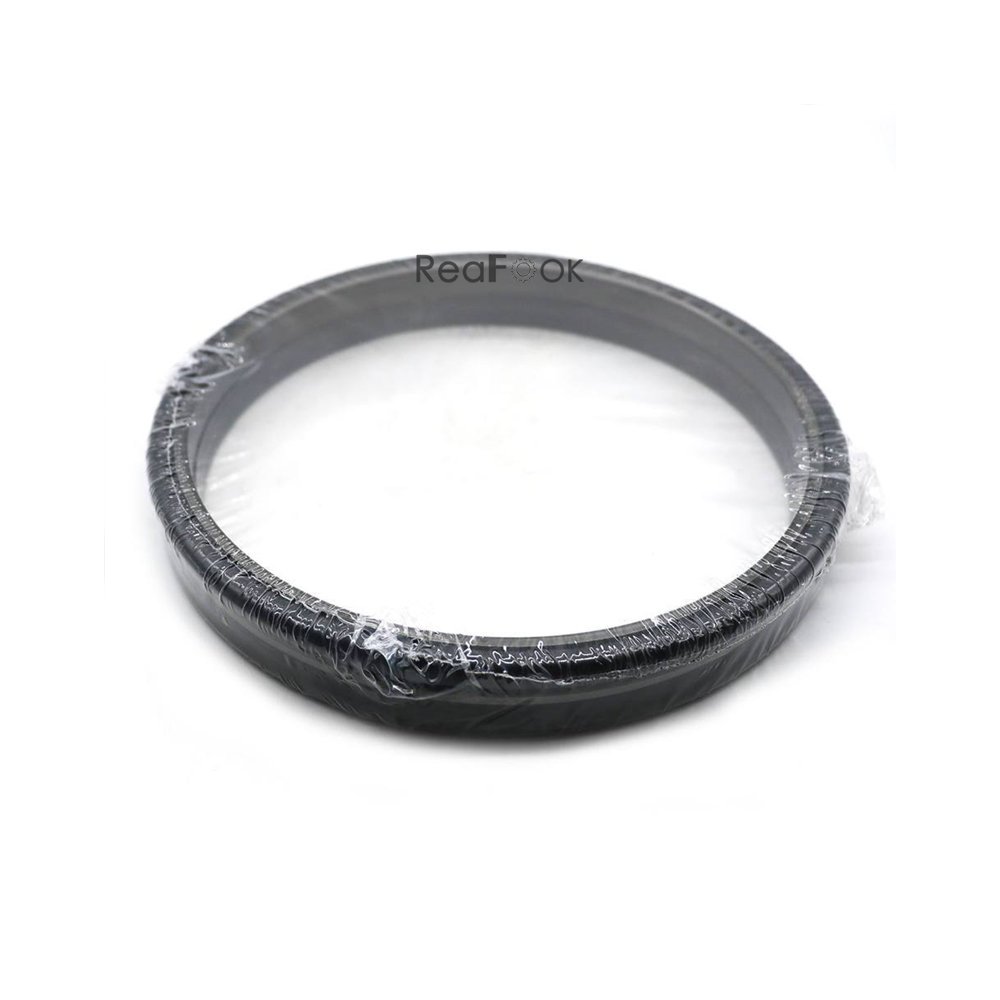

Final Drive Floating Seal Kit 171-9409 096-6789 Fit Excavator Caterpillar CAT307B 307C 308C CR

Product Name: Seal Kit and O-Ring Reference Part Number: 171-9409, 096-6789 Compatible Machine: Excavator Caterpillar CAT307B 307C 308C CR…Description: The Floating seals are used in the final drive of Hydraulic Excavators. They provide an effective sealing solution for the piston motor, such as the axle shaft and the final drive housing, and retain lubricating oil within the system. Floating seals offer high durability, and excellent resistance to wear and tear, and maintain their sealing performance even under harsh conditions, making them suitable for Hydraulic Excavators.Pos. Part No Qty Parts name Comments 1. 096-6789 [1] SEAL 2. 171-9343 [1] SHAFT 3. 6B-1124 [1] BALL BEARING 4. 096-6826 [1] SEAL-OIL 5. 171-9331 [1] SPINDLE AS 5A. 171-9332 M [3] BOLT (M24X2X70-MM) 6. 095-1735 [1] SEAL-O-RING 7. 7I-2328 [1] RING 8. 171-9339 [1] COVER 9. 198-5022 [2] PLUG 10. 095-1582 [3] SEAL-O-RING 11. 171-9422 [1] SHAFT 12. 171-9337 [1] GEAR-SUN 13. 096-6837 [1] RING-RETAINING 14. 7I-2371 [1] BALL 15. 171-9338 [1] KIT-GEAR 16. 6V-8754 [6] RING-RETAINING 17. 171-9334 [3] SHAFT 18. 171-9342 [1] PLUG 19. 099-6521 B [3] RING-SNAP 099-6522 B [3] RING-SNAP 099-6523 B [3] RING-SNAP 099-6524 B [3] RING-SNAP 099-6543 B [3] RING-SNAP 24. 099-6544 B [3] RING-SNAP 099-6545 B [3] RING-SNAP 099-6546 B [3] RING-SNAP 099-6547 B [3] RING-SNAP #SEBP35390123 099-6548 B [3] RING-SNAP 099-6549 B [3] RING-SNAP 099-6550 B [3] RING-SNAP 31. 171-9421 [6] BEARING 32. 7I-2317 [6] SPACER (28.5X47X1.6-MM THK) 33. 171-9336 [6] BEARING 34. 171-9333 [1] KIT-GEAR 35. 171-9340 [28] PIN 36. 171-9330 [1] HOUSING 37. 171-9341 [2] BEARING 38. 171-9409 [1] KIT-SEAL 39. 095-1575 [2] SEAL-O-RING B USE AS REQUIRED M METRIC PART
