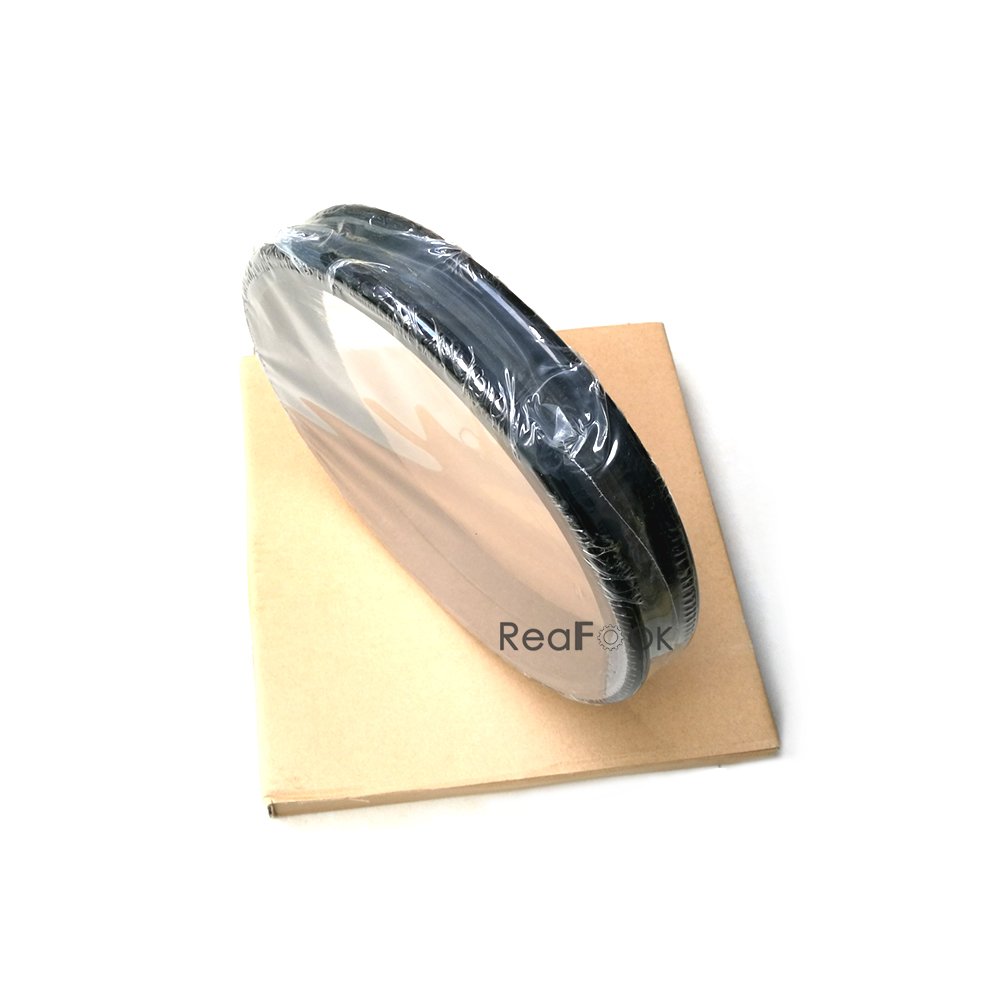

Final Drive Floating Seal Group TZES100-250-A Fit Excavator Komatsu PC100-5 PC100-6 PC120-3 PC120-5 PC120-6 PC128UU-1 PC128US-1 PC130-5 PC130-6

Product Name: Seal Group Reference Part Number: TZES100-250-A Compatible Machine: Excavator Komatsu PC100-5 PC100-6 PC120-3 PC120-5 PC120-6 PC128UU-1 PC128US-1 PC130-5 PC130-6 PC60-6 PC60-7…Description: The Floating seals are used in the final drive of Hydraulic Excavators. They provide an effective sealing solution for the piston motor, such as the axle shaft and the final drive housing, and retain lubricating oil within the system. Floating seals offer high durability, and excellent resistance to wear and tear, and maintain their sealing performance even under harsh conditions, making them suitable for Hydraulic Excavators.Attributes: • Prevents lubricating oil leakage • Resistant to wear and tear • Effective sealing for pistonApplications: This Floating Seal is used to provide effective sealing and retain lubricating oil while preventing contaminants from entering the piston motor.Pos. Part No Qty Parts name Comments 1. TZ266B1001-00 [1] HUB,MOTOR TZ263B1102-01 [1] SPINDLE KIT 49.5 kg. TZ263B1132-05 [1] SPINDLE ASS’Y 49.5 kg. 4. TZ200B1019-03 [3] BOLT 0.344 kg. analogs: [“TZ200B101902”] TZ263B1104-00 [1] RV GEAR ASS’Y19 kg. TZ263B1204-00 [1] RV GEAR KIT 10 kg. 7. TZ200B1009-01 [3] SHAFT 1.397 kg. 8. TZ200B1022-00 [6] BEARING 0.56 kg. 9. TZ200B1023-00 [6] BEARING 0.26 kg. 10. TZ270B1006-00 [1] GEAR 0.381 kg. TZ264B1107-00 [1] SPUR GEAR KIT 12. TZ266B1008-00 [1] COVER 9.16 kg. 13. TZ200B1014-01 [3] PIECE 0.04 kg. 14. TZ269B1015-00 [1] COUPLING 0.25 kg. 15. TZ225B1017-00 [24] PIN 0.141 kg. 16. TZ150A1020-00 [3] SNAP RING KIT 0.925 kg. 17. TZ200B1021-01 [2] BEARING 3.41 kg. analogs: [“TZ200B102100”] 18. 04064-03515 [3] RING,BACK-UP 19. 07000-11007 [2] O-RING 20. TZARP568-378-7 [1] O-RING 21. TZJW1516-G37-7 [1] O-RING 22. TZES100-250-A [2] SEAL (K1) 23. TZGM1-2 [2] PLUG 24. TZJB1176M12-32 [10] BOLT 25. 04260-00952 [1] BALL K1. TZ276B9000-00 [1] SERVICE TZ15Z-25-42-10 [1] SEAL TZ266B2035-00 [1] O-RING TZJB2401-P26-9 [2] O-RING 07000-12016 [4] O-RING 07000-12018 [3] O-RING TZ266B2039-00 [1] O-RING 07000-12010 [2] O-RING 07002-02034 [1] O-RING 07000-12011 [4] O-RING 07000-12014 [2] O-RING 07000-12020 [4] O-RING TZJB2407T2-P14 [4] RING TZJB2407T3-P20 [4] RING
